Trace Analyzer

Shared event plane for RF, wireless, GPS, and mission events.

Trace Analyzer is the RTG Spectrum layer that turns specialized module outputs into one source-aware timeline for correlation, Pattern-of-Life baselining, anomaly/change detection, and operator decision support. Cellular 4G/5G event-family support is planned.

Review Evidence Discuss Platform

Shared data plane

Multiple collectors and applications, one reviewable event model.

The launcher starts the individual modules, while Trace Analyzer receives their events and normalizes them into timestamped packets. That lets an operator or reviewer compare WiFi observations, native BLE HCI activity, GPS context, RF Sentinel detections, SDR-Shark events, and PASSIVE-SHIELD prototype cues without losing source context or jumping between separate dashboards.

Timeline Sources

AirScope WiFi AP, station, and survey events
Native BLE HCI detections and GPS status
RF Sentinel Bluetooth Classic, BLE, Zigbee, FM, sub-GHz, and cellular-family events
SDR-Shark spectrum and decoder events
PASSIVE-SHIELD passive DJI/OcuSync prototype evidence

Public-safe evidence

Unified timeline and launcher views.

These images use deterministic mock events and sanitized identities. They show the real Trace Analyzer interface and launcher pattern without publishing local SSIDs, live GPS traces, RF captures, or deployment-specific identifiers.

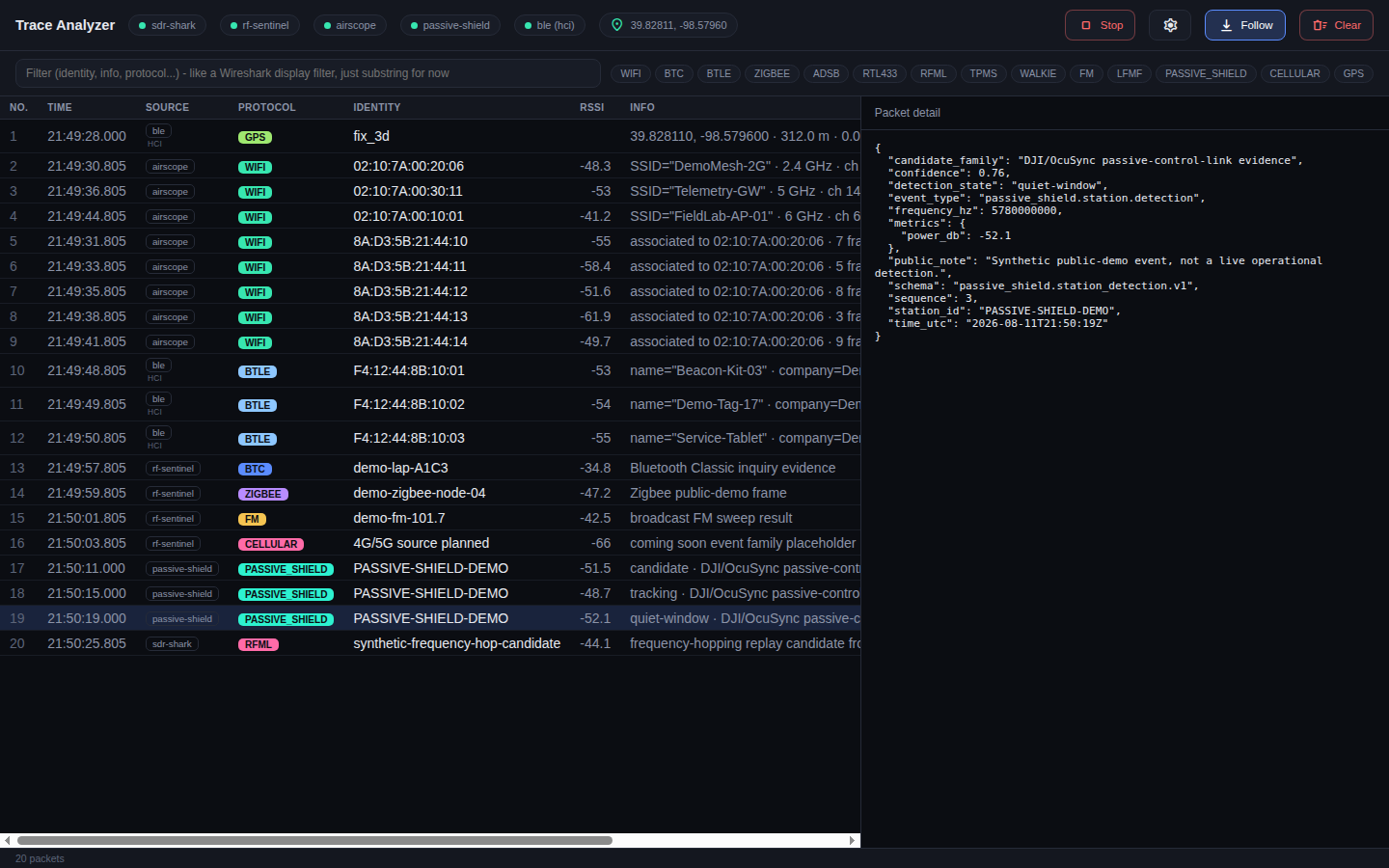

Trace Analyzer unified event timeline with BLE GPS WiFi RF Sentinel SDR-Shark and PASSIVE-SHIELD events — Trace Analyzer showing BLE, GPS, WiFi, RF Sentinel, SDR-Shark, and PASSIVE-SHIELD passive DJI/OcuSync prototype events in one packet timeline. Cellular 4G/5G is represented as a planned event family.

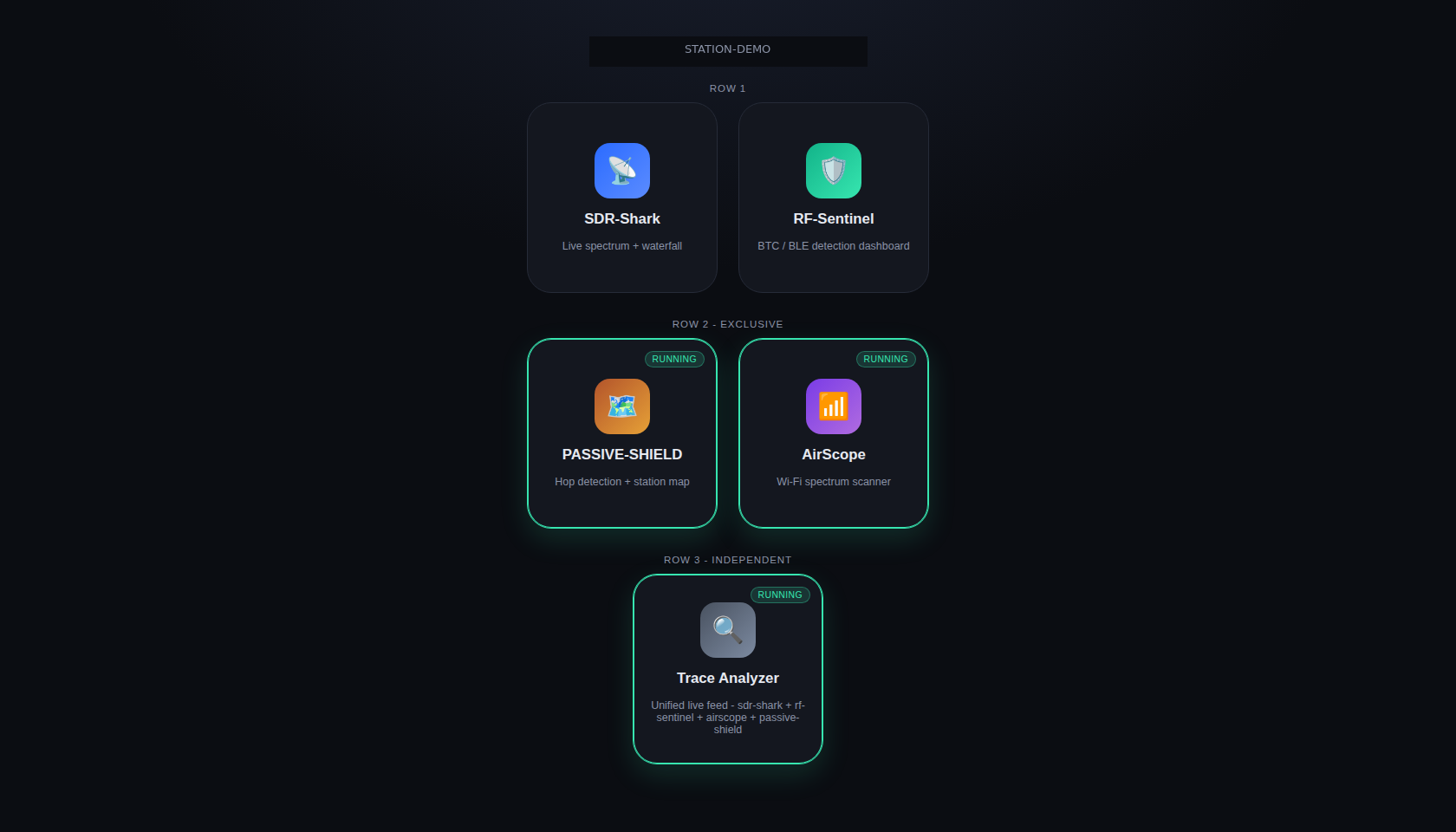

RF tool launcher showing SDR-Shark RF Sentinel PASSIVE-SHIELD AirScope and Trace Analyzer — The app launcher ties the toolchain together while preserving hardware-exclusive rows and independent analysis tools.

Pattern of Life

Baseline normal behavior, then surface change.

Pattern-of-Life review becomes stronger when each observation carries its source, protocol, identity, RSSI, and raw payload. Trace Analyzer keeps the packets source-aware, so recurring WiFi infrastructure, BLE devices, GPS context, spectrum events, and defense prototype cues can be correlated, baselined, and inspected for new, missing, anomalous, or mission-relevant changes.

What This Proves

MQTT-first event integration across multiple modules
Protocol normalization without forcing a shared internal schema
Correlation, baseline, change detection, and raw-detail review
Public-safe demo data that avoids live RF or location disclosure
